YD-SF2513 Flexible piezoelectric sensor is a high-sensitivity polymer piezoelectric film sensor, which is composed of pet substrate, upper and lower electrodes,...

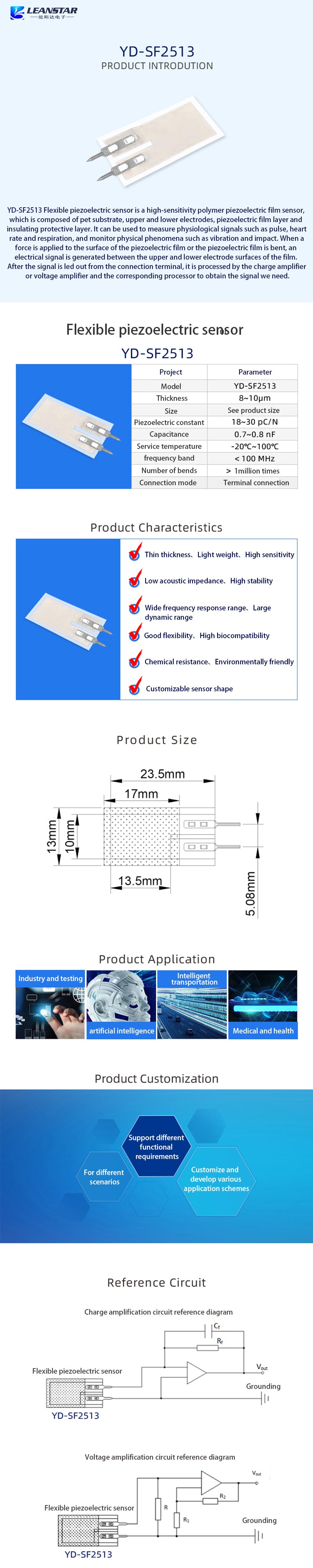

YD-SF2513 Flexible piezoelectric sensor is a high-sensitivity polymer piezoelectric film sensor, which is composed of pet substrate, upper and lower electrodes, piezoelectric film layer and insulating protective layer. It can be used to measure physiological signals such as pulse, heart rate and respiration, and monitor physical phenomena such as vibration and impact. When a force is applied to the surface of the piezoelectric film or the piezoelectric film is bent, an electrical signal is generated between the upper and lower electrode surfaces of the film. After the signal is led out from the connection terminal, it is processed by the charge amplifier or voltage amplifier and the corresponding processor to obtain the signal we need.
